DS Reflecting Aluminum Foil Insulation

Brand Name:

Tagofoil

Usage:

Above data are typicalresults and not the guaranteed performance

Min. Order:

Contact for details

Delivery time:

Contact for details

Certificate:

ISO 9001, AWTA, BS, SGS

Main market:

Vietnam, International

Contact infomation

Contact name: Mr. Wan (Chi/Eng)

Job Title: Overseas manager

Mobiphone:+86 510 88312866

Email: tago@tagofoil.com

Product & service detail

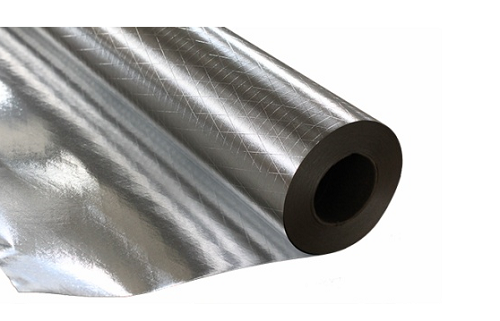

DS REFLECTING ALUMINUM FOIL INSULATION

Double-sided reflective insulation, with good insulation results, high vapor barrier power and sound insulation properties. DS Reflecting Alum Foil Insulation used for rebonding various insulation materials, and as the heat insulation and vapor barrier layer for air ducts in steel-structure buildings or central air conditioning systems. May also be used as sound and heat insulation material for high-rise buildings, theaters and concert halls, etc.

Construction

Facing Composition	Description	RAC60A Value (Metric)	FSK60B Value (Metric)	RAC100A Value (Metric)
Foil	Aluminum	7 micron	7 micron	7 micron
Reinforcing	Fiberglass	8 /100mm- MD	8 /100mm- MD	8 /100mm- MD
		12 /100mm- XD	8 /100mm- MD	12 /100mm- XD
Adhesive	Polyethylene
Kraft	Natural	60gsm	60gsm	100gsm

Typical physical property

Physical Property	Test Method	RAC60A Value (Metric)	RAC60B Value (Metric)	RAC100A Value (Metric)
Basic Weight	Scale	125gsm	125 gsm	170 gsm
Permeance (WVTR)	ASTM E96, Procedure A	1.15 ng/N.s	1.15 ng/N.s	1.15 ng/N.s
Tensile Strength - MD	ASTM D828	155 N/25mm	156 N/25mm	250 N/25mm
Tensile Strength - XD	ASTM D828	86 N/25mm	90 N/25mm	125 N/25mm
Burst Strength	ASTM D774	55 N/cm2	55 N/cm2	80 N/cm2
Temperature Resistance	ASTM C1263 -29 °C/+66 °C	Remains Flexible No Delamination	Remains Flexible No Delamination	Remains Flexible No Delamination
Reflectivity of foil surface		97%	97%	97%
