High Quality Aluminum Foil Fiberglass Cloth

Brand Name:

Tagofoil

Usage:

Used as the thermal insulating materials of steam heating

Min. Order:

Contact for details

Delivery time:

Contact for details

Certificate:

ISO 9001, AWTA, BS, SGS

Main market:

Vietnam, International

Contact infomation

Contact name: Mr. Wan (Chi/Eng)

Job Title: Overseas manager

Mobiphone:+86 510 88312866

Email: tago@tagofoil.com

Product & service detail

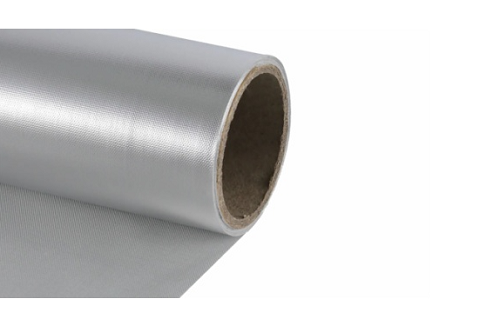

HIGH QUALITY ALUMINUM FOIL FIBERGLASS CLOTH

TAGO Aluminized Fiberglass Cloth Series is ideal thermal insulation material combining aluminum and fiberglass. The insulation material combines many types of fiberglass, Kevlar, carbon fiber, flame-retardant cotton, aluminosilicate ceramic cloth, silicone fabric, EPE, non-woven fabric, and other component materials. It can be used for piping protection, engine components, construction materials, and other uses. The excellent thermal insulation materials are great for steam heating pipelines, sound-proof materials in construction and provide a protective layer for glass wool blankets. They offer fire-resistance, anticorrosion, heat insulation, and sound absorbency. For packing materials they offer moisture resistance, mildew proof properties, fire-resistance, and anticorrosive properties.

Application

1.Used as the thermal insulating materials of steam heating pipelines, sound -proof materials in construction and protective layer of super glass wool with excellent functions of fire -resistant, anti-corrosion, heat isolation and sound absorbability.

2.Used as packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.

3.Used for wrapping materials of oil transportation pipelines and steam pipelines in petrochemical industry with the same effects as mentioned above

Typical physical property

Item No.			FG7628
Weave			Plain
Thread count	Warp		17.3 per cm	45.7 per cm
	Weft		12.5 per cm	33 per cm
Weight			200 g/sm	5.8 OZ/ YDZ
Thickness			0.2 mm	0.008 inch
Coating			Aluminum foil/ Metalized film
Coating thickness			7/18/25 micron		0.28/0.7/0.9 mil
Tensile		Warp	2025 N/ 5 cm		225 lbs/ inch
Strength		Weft	1620 N/ 5 cm		180 lbs/ inch
Width			101.6 cm		40 inches
			121.9 cm		48 inches
			152.4 cm			60 inches
Service temperature			Fiberglass is 550 degree Celsius, while mucilage is 300 degree Celsius
