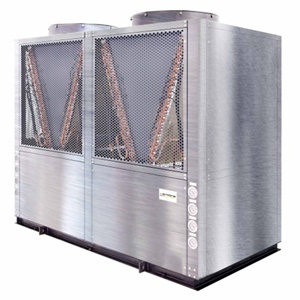

HIGH-TEMPERATURE HEAT PUMP 80°C

HIGH-EFFICIENCY THERMAL TECHNOLOGY FOR MODERN INDUSTRY

In various industries such as food processing, healthcare, industrial laundry, and centralized hot water supply systems, the demand for high water temperatures up to 80°C is essential.

The High-temperature Heat Pump represents a breakthrough solution that enables businesses to significantly reduce energy costs while maintaining maximum efficiency and operational safety.

HIGH CAPACITY – STABLE 24/7 OPERATION

With a thermal capacity of up to 81 kW, the unit perfectly meets the large-scale hot water demands of industrial facilities, operating continuously, durably, and with outstanding energy efficiency.

MAIN TECHNICAL SPECIFICATIONS

• Thermal capacity: 81 kW


• Power consumption: 22 kW – remarkable energy savings


• Circulation flow rate: 24 m³/h


• Refrigerant: R134A – high heat exchange efficiency, environmentally friendly


• Compressor: 6 Copeland scroll compressors (USA) – durable, international quality standard


• Maximum water temperature: 80°C


• Heat exchanger type: Single condenser coil


• Casing material: SUS 304 stainless steel – superior corrosion resistance


• Condenser working pressure: 0.8 MPa


• Noise level: ≤ 68 dB – smooth and quiet operation


• Maximum current: 74 A


• Voltage: 380V / 3 phase / 50Hz


• Ambient temperature range: -10°C to 45°C


• Dimensions: 2396 x 1412 x 2060 mm


• Net weight: 893 kg

KEY BENEFITS OF HIGH-TEMPERATURE HEAT PUMP

✔ Saves 60–70% of electricity compared with electric or gas water heating methods

✔ Stable high-temperature output, suitable for strict technical processes

✔ Zero CO₂ emissions – contributes to environmental protection

✔ Safe operation with no risk of fire or explosion

✔ Applicable across multiple industries: food processing, hospitality, healthcare, laundry, and manufacturing

TYPICAL APPLICATIONS

• Hotels & Resorts: centralized hot water systems


• Factories & Industrial Zones: food and chemical production


• Medical Centers & Hospitals: sterilization and disinfection water supply


• Industrial Laundry Facilities: high-temperature washing processes

• M&H ENERGY – YOUR TRUSTED PARTNER IN HOT WATER ENERGY SOLUTIONS

With over 16 years of experience and more than 150 projects nationwide, M&H Energy Solutions Joint Stock Company is a pioneer in supplying residential and industrial heat pump systems.

We are committed to:
🔹 Genuine imported products with transparent warranty policies

🔹 Comprehensive consulting – surveying – designing – installation services

🔹 Periodic maintenance with dedicated technical support

🔹 Customized solutions for every operational model

M&H ENERGY – ENHANCING THERMAL SOLUTIONS FOR AN ENERGY-SAVING & SUSTAINABLE FUTURE
