Product & service detail

GEOMATE - GS7 GNSS

TCMD Viet Nam Limited Liabilities Company is a company specializing in the supply of surveying and mapping equipment and services in Vietnam. The geodetic equipment provided by TCMD comes from many of the worlds leading brands such as Leica (Switzerland), Trimble (USA), and Nikon, Topcon, Sokkia (Japan). Notably, TCMD is the exclusive distributor of Foif brand RTK products in Vietnam.

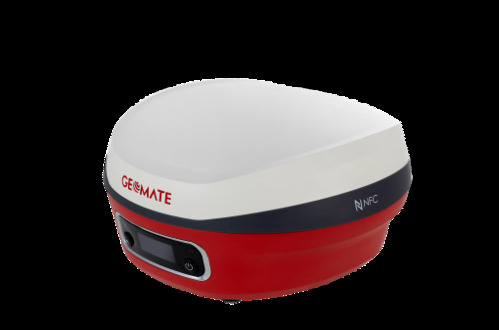

Outstanding Advantages of the GeoMate - SG7 GNSS

Rugged and Durable Design: The GeoMate SG7 features an extremely sturdy and durable design. It is built to operate reliably in harsh environments, complying with IP67 standards for dust and water resistance.

Up to 1608 Channels: Supports reception of satellite signals from a wider range of constellations compared to previous models, enhancing positioning accuracy and reliability.

Compatible with All Devices on the Market: Ensures maximum convenience and flexibility, allowing seamless integration and usage with a wide range of positioning equipment.

Extended Working Time: The SG7 RTK is equipped with a high-capacity 9600mAh battery, enabling continuous operation for up to 18 hours on a single charge.

Dual Functionality as Both Rover and Base: The GeoMate SG7 offers versatile deployment with support for both Rover and Base modes, including 4G Base, External Radio Base, and Internal Radio Base.

Enhanced Performance with IMU-RTK GNSS: Features advanced IMU-RTK GNSS technology, which integrates satellite positioning (GNSS) and inertial measurement (IMU) for significantly improved performance across a wide range of applications and industries.

Additional Superior Features: Besides the key advantages above, the GeoMate SG7 GNSS also includes: Tilt compensation from 0° to 60°, simultaneous reception of 6 satellite signals, built-in connectivity modules including Wi-Fi, Bluetooth, and more.

FC2 Controller - Data Collector for the GeoMate SG7

≫ 5.5-inch HD Display: Equipped with a large 5.5-inch high-definition screen (1440 x 720 pixels), allowing users to view data clearly and comfortably.

≫ MateSurvey App - Intuitive and User-Friendly Interface: Comes with the MateSurvey application pre-installed, enabling users to efficiently collect, analyze, and store data with ease.

≫ Supports Up to 23 Languages, Including Vietnamese: Allows users to navigate and operate the system quickly and efficiently in their preferred language.

≫ Operating System & Specifications: OS: Android 8.1, CPU: Helio MTK6762, 2.0GHz octa-core, RAM: 4GB, ROM: 64GB

≫ External Storage: Supports microSD cards up to 128GB

≫ Compact and Lightweight Design: With dimensions of 225mm x 80mm x 17mm and a weight of just 383g, the FC2 Controller is portable and convenient for fieldwork.

≫㺍MP Camera: Built-in 13-megapixel camera for capturing and saving images accurately and easily.

≫ Connectivity Options: Supports 2G / 3G / 4G, Wi-Fi, Bluetooth, USB, and NFC for flexible data transmission and connection.

With many years of experience in the surveying equipment industry, TCMD has established itself as a trusted name not only in Hanoi but also across Vietnam, earning widespread recognition and trust from customers across Vietnam.
