MG21DF UV/OV & SPP With Selectable OFF Delay

by Huy Phuc Automation - Huy Phuc Technics Services Co., Ltd — verified Vietnamese supplier

Brand Name	GIC
Minimum Order (MOQ)	Contact for details
Supply Ability	Contact for details
Delivery Time	Contact for details
Warranty	12 to 24 months
Certificate	CE, RoHS Compliant, UL Listed, UKCA
Main Market	FDI in Vietnam

Product & Service Details

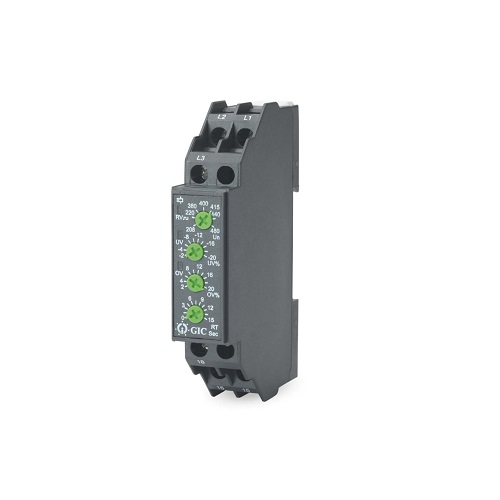

MG21DF UV/OV & SPP WITH SELECTABLE OFF DELAY

Product information:

- Supply Voltage: 208 - 480 VAC (3 Phase 3 Wire)

- Supply Variation: -12% to +10%

- Frequency: 50/60 Hz

- Power Consumption (Max.): 3 VA

- Settable Nominal Voltage: 208 - 220 - 380 - 400 - 415 - 440 - 480 VAC

- Trip Levels:

• Phase Loss: Yes

• Phase Sequence: Yes

• Phase Asymmetry: N A

• Under Voltage: -2% to -20%

• Over Voltage: +2% to +20%

- Time Delay:

• ON Delay: 5s

• OFF Delay: 0.5 to 100s (Selectable)

- Relay Output: 1 C/O

- Contact Rating:مA @ 250 VAC / 30 VDC (Resistive)

- Operating Temperature: -15° C to + 60° C

- Storage Temperature: -20° C to + 80° C

- Humidity (Non Condensing): 95% (Rh)

- Enclosure: Flame Retardant UL94-V0

- Dimension (W x H x D) (in mm): 18 X 90 X 58.5

- Weight (unpacked) Approx.: 70 g

- Mounting: Base/DIN Rail

Contact Huy Phuc Automation for more information and consultation about the MG21DF UV/OV & SPP With Selectable OFF Delay!
