Flat Ribbon Cable

Brand Name:

Myungbo Vina

Usage:

Parallel cable structure, optimized for space and performance

Min. Order:

Agreement

Supply Ability:

20,000,000m

Delivery time:

15 days after PO.

Warranty:

15 years

Certificate:

ISO 9001:2008, ISO 14001:2004

Main market:

Vietnam & International

Contact infomation

Contact name: Ms. Hien (Eng/Vie/Kor)

Mobiphone: +84 348 226 927

Email: pth2@mbcable.co.kr

Contact name: Mr. Choi (Eng/Vie/Kor)

Mobiphone: +84 829 091 832

Email: cic@mbcable.co.kr

Product & service detail

Flat Ribbon Cable – The Optimal Solution for Industrial Equipment

In the field of industrial electrical equipment—where installation spaces are increasingly compact but aesthetic and performance requirements remain high - Flat Ribbon Cable stands out as an ideal connectivity solution. With its slim twin-parallel core design, flexible bendability, and compliance with international safety standards, Flat Ribbon Cable is widely used in low-voltage devices, offering optimal assembly efficiency without compromising on reliability.

1. Flat Ribbon Cable – Versatile Industrial Cable

🛠️ Key Features

Temperature Rating: UL 80ºC ~ 105ºC
Rated Voltage: 30V ~ 600V
Flame Resistance: VW-1, FT1 Pass
Available Sizes: 50AWG – 10AWG

⚙️ Applications

Internal power wiring: Air purifiers, coffee machines, etc.
Office & automation equipment: Printers, scanners, photocopiers
LED, display, and sensor systems: LED modules, decorative lighting, LED strips
Wire harness assembly & detachable power cords: Custom harness production based on customer specifications

🧱 Construction

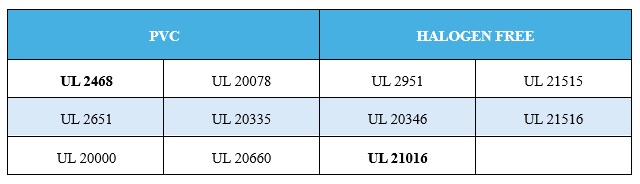

📝 Products

2. Why Choose Flat Ribbon Cable from Myungbo Vina?

✅ High-Quality Copper Conductor

Made from 99.99% pure, soft-annealed copper
Excellent conductivity, reduced resistance, and improved efficiency

✅ Heat-Resistant PVC Insulation

Flexible PVC jacket rated up to 80°C
Good insulation, leak-proof, abrasion-resistant

✅ Certified to International Standards

Complies with UL, cULus, and CE – ensures safety and reliability
RoHS compliant – environmentally friendly
Manufactured under ISO 9001 and ISO 14001

✅ Custom Manufacturing – Multiple Colors & Sizes Available

Color options: red, black, yellow, green, white, gray, etc.
Cross-sectional areas from 0.03mm² to 1.31mm² (equivalent to 32AWG – 16AWG)

✅ Competitive Pricing – Fast Delivery

Manufactured at Bac Ninh factory (includes 4 production workshops)
Cable Center branch located in District 1, Ho Chi Minh City
Available from stock or custom-produced based on order

✅ On-Site Technical Support

Expert consultation to the right cable for your equipment
Support for sending samples and original UL, RoHS certificates
CO certification available for export orders

3. Contact for Free Consultation & Samples

Looking to purchase Flat Ribbon Cable in bulk for industrial or export use?

Contact Myungbo Vina to request free samples and a quick quotation:

📞 Hotline/Zalo: +84 348 226 927 | +84 829 091 832

📧 Email: pth2@mbcable.co.kr | cic@mbcable.co.kr

🌐 Website: www.mbcable.co.kr
